Low Frequency 134.2 KHz Android 8.1 Passive RFID Reader Bluetooth
Specifications of SD60ID LF RFID Reader Bluetooth:
- Built-in 134.2khz LF RFID module ,support ISO11784/11785 Animal tags
- Support external antenna expansion, flexible application
- 6.0inch HD Touch Screen , 2160*1080 resolution ,Bring Comfortable visual experience
- Support NFC Reader , can be used for identification and authority management
- NewLand:CM60 1D 2D Barcode Scanner
- 6000mAh big capacity Battery ,long working time
Application Scenarios of SD60ID LF
- Livestock Management
- Dustbinmangement

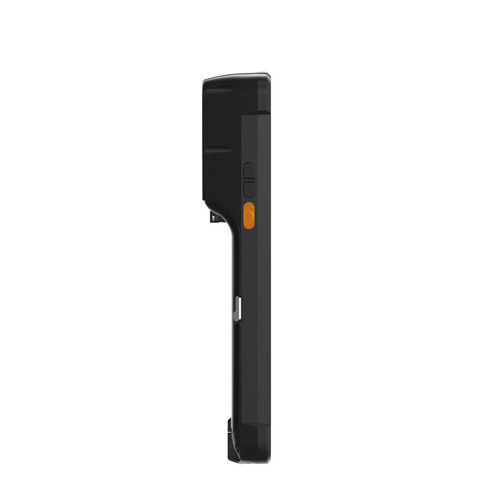

Pictures of SD60ID LF
Parameters of SD60ID LF
| OS | Android 8.1 |
| CPU | Octa-core 2.0GHz |
| RAM | 4GB |
| ROM | 64GB |
| Camera | Rear 13MP AF+Front 5MP FF |
| Size | 165.5*81.6*29.1mm |
| Display Size/Type | 6.0 inch HD |
| Resolution | 2160*1080 |
| Touch Screen | 5-point capacity touch screen |
| Weight (with battery) | 300g |
| Keypad | 2 volumes keys , 2 function keys(left one and right one), 1power key |
| Battery Capacity | 6000mAh |
| Charging | PE Fast charging ,fully charging time< 4 hours |
| Bluetooth | BT4.1 LTE |
| Wifi | IEEE 802.11a/b/g/n 2.4G 5G Dual band |
| WWLAN | FDD-LTE B1/B3/B5/B7/B8
TDD-LTE B38/B39/B40/B41
TDSCDMA B34/B39
WCDMA B1/B2/B5/B8
GSM B2/B3/B5/B8
CDMA1x/CDMA2000 BC0/BC1 |
| GPS | GPS+BD+GLONASS |
| Audio | Front dual stereo speakers, Volume 90db±3db (test distance 10cm) |
| Sensor | Gsensor, Ambient light sensor, Proximity Sensor, COMPASS |
| Interface | 2 Nano SIM card slots
1 Micro SD card slots
USB TYPE-C
Support OTG
Fast charge 5V/9V 1.67A |
| Notification | Sound, Vbration,LED prompt |
| Operating Temperature | -20℃ ~ +55℃ |
| Storage Temperature | -30℃ ~ +70℃ |
| Working Humidity | 5% to 95% |
| IP Class | IP65 |
| Drop Test | 6 sides can withstand the impact of a 1.5-meter drop to the concrete floor |
| ESD | ±15kV Air Discharge,±8kV Contact Discharge |
| Certification | CCC ,CE,FCC |
| NFC | Support agreement: ISO14443A/B
ISO15693, NFC reading distance:0~5cm |
| RFID(LF) | Work frequency 134.2khz
Support protocol : ISO11784/11785
Animal tags
Reading distance ≥7cm |
| External antenna (optional) | work frequency 134.2KHZ
Support protocol : ISO11784/11785
Animal tags |
Barcode scanning
Support code system | NewLand:CM60 2D Scan engine
Support code system:EAN13, EAN8, UPCA
UPCE, Code 128, Code 39, Codabar
UCC/EAN128, RSS,ITF, ITF14, ITF6, ISSN
ISBN, Standard 25, Matrix 25,Industrial 25
Plessey, MSI Plessey, Code 11, Code 93
PDF417, QR Code, DataMatrix, AZTEC
Hanxin Code, Maxicode, Micro QR
Micro PDF417, Composite |
Company Information
As a listed company from china manufacturer, we support you:
- Completely Free SDK and technical support for you.
- ODM/OEM customization services according to your needs.
- 13 months warranty for your devices and other parts. and 6 months for the batteries. Exend warranty,it'll cost 0.5% for each per year.
- Free maintenance of the devices and part of accessories replacement in the warranty .if out of the warranty, you'll have to pay the basic cost for them.
FAQ
Question 1: What's your MOQ?
The MOQ of barcode scanner handheld PDA is 1 piece.
Question 2: How long is the delivery time
The delivery time of barcode scanner goods is different from quantities:
If 1~100 pcs, It's about 5--10 working days;
If 100~500 pcs, it's about 10--20 working days;
If More than 500 pcs, It's about 20-30 working days.
Question 3: Would you like to supply 1 sample for testing?
Yes, Of course. We can provide 1 sample Terminal PDA for your testing.
Question 4: What's the total price for 1 sample?
As a manufacturer of barcode scanner terminal PDA,the more you buy, the cheaper it'll be.
The sample price is a little bit higher than the common wholesale price excluding the freight fee.
Question 5: Are you a manufacturer of Handheld PDA?
Yes, we are a R&D orientation China Listed Company, mainly producing industrial PDA Terminal Hardware and as a software solutions supplier with over 8 years' OEM/ODM experience. We are also cooperating with Foxconn Factory.
Question 6: What kind of services do you support ?
We provide you Free SDK and Technical Support for your Barcode Scanner.
We also provide ODM/OEM Customization Services based to your demands.
We support 13 months Warranty for all the device and 6 months for the batteries. Exend warranty, it costs 10% at the first year, and 15% for the second year.
Question 7: What's for payment term and delivery term ?
It's generally 30%-100% TT in advance for all orders. Meanwhile, Paypal or West Union is acceptable.
FOB Shenzhen as Trade Term.
Question 8: Who are your customers?
Our products have been sold to worldwide,especially market in South/North America, Europe, Asia, Africa Mid-east, etc.
The market share is increasing quickly every year and we get more and more positive feedbacks from our customers.
