Android Smart Card Uhf Rfid Handheld Reader 900mhz Modules Rechargeable Battery

Product Categories
Beijing Speedata Technology Co., Ltd
Contact Now

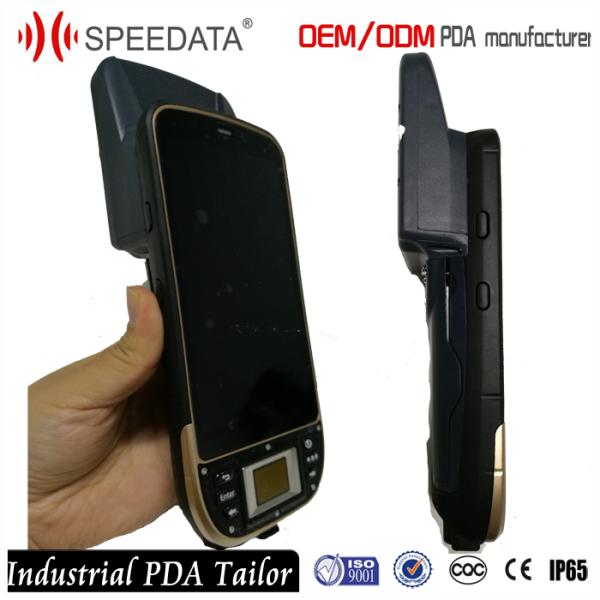

Android Smart Card Uhf Rfid Handheld Reader 900mhz Modules Rechargeable Battery

  • 1
  • 2

Brand Name : SPEEDATA

Model Number : KT45Q

Certification : ISO9001/FCC/CE/ROHS/IP65/1.5M DROP

Place of Origin : CHINA MAINLAND

MOQ : 1 Unit

Payment Terms : MoneyGram, L/C, T/T, Western Union,paypal

Supply Ability : 10000 Units per Mon

Packaging Details : Speedata Conventional Packing-1pcs; USB Data Cable-1pcs; Charger-1pcs; Protection Cover-1pcs; Hand Strap-1pcs.

Item Name : UHF 900Mhz RFID Reader

Mainboard : Android 5.1 Quad-core 1.3Ghz Cortex-A53

Display : 5.0inch Touch Screen

Wireless Communication : 4G LTE

Memory : 2GB RAM

Battery : Rechargeable Li-ion battery 4500mAh

UHF Reader : 860-960MHZ modules ISO18000-6C EPC Gen2

Fingerprint : Fingerprint Reader Optional

Contact Now

Android Smart Card Uhf Rfid Handheld Reader 900mhz Modules Rechargeable Battery

Android Smart Card Uhf Rfid Handheld Reader 900mhz Modules Rechargeable Battery

SPEEDATA has great advantages as following:

  • 1.Listed Company Founded in 2008
  • 2.Focusing On the IOT Field for Over 8 Years.
  • 3.Support 6 kinds of OEM/ODM Customized Service.
  • 4.Professional R&D Capability: Free SDK and Technical Support
  • 5.ISO9001 Verified Manufacturer Passed FCC CE IP65 Certificate
  • 6.Hardware and Software Solutions Provider
  • 7.Assembled with Various Modules
  • 8.After-Sale Service: 13 Months Warranty

Applications of KT45Q Handheld UHF RFID Reader :

  • Logistics & Express
  • Transportation
  • Electric meter readings
  • Network community management
  • Storage & Distribution
  • Petrochemical inspection
  • Product tracking
  • Health & pharmaceutical industry
  • Tobacco Logistics
  • Fixed-assets management
  • Surveying and mapping
  • Animal tracking & research

Advantages of KT50 Android Handheld PDA:

  • Android 5.1 Operation System
  • 4G LTE
  • 1GB RAM or 2GB RAM Custom Made
  • 5.0inch High-definition IPS LCD capacitive touch screen
  • IP65 Industrial Class, 1.5M drop protection

Parameter of KT50 Android Handheld PDA:

KT50 Specification

Android OS
OS Android 5.1
Hardware
Core board CPU Quad-core 1.3Ghz
ARM® Cortex-A53 (LPDDR2 and LPDDR3)
WWLAN FDD B1B3B7
TDD B38B39B40
WCDMA B1B2B5B8
EVDO BC0
GSM B2B3B5B8
Flash ROM 16GB
RAM 2GB DDR3

Motherboard
Display @ 5.0inch IPS 1280*720
touch screen Multi-point touch capacitive screen
Form Factor Bar type classical PDA,Industrial appearance
GPS Supports GPS/QZSS/SBAS (WAAS/MSAS/EGNOS/GAGAN). Support Full AGPS
DGPS (please check options)
Bluetooth v2.1+EDR / 3.0+HS / v4.0 Low Energy (LE)
dual-band WiFi 2.4 and 5Ghz 802.11 a/b/g/n
External Interface USB HOST/RS232(Customized)
Protection class IP65
Drop resistance level 1.5m
Camera Function Camera 8MP Camera
Video Support still image and video capture
Sensor G-sensor YES
Keypad Front 4
Side 4
Interface Mini-USB connector USB2.0 connection
SIM card slot *2
TF card slot Yes
power jack Yes
Audio Jack Yes
Battery Type rechargeable Li-ion battery 2600mAh, 7.4V
Standby Time 500hours
Calls Time Up to 6hours
Charging Time 4 hours
Physical Characteristics Dimension 175*76*27mm
Weight >400g with battery (according config)

OPTIONS
RFID Reader option 1 LF RFID(134.2khz, ISO11784/11785, FDX-B/HDX)
option 2 LF RFID(125KHz)
option 3 HF RFID(13.56MHz ISO 1443A/B ISO 15693)
option 4 NFC(include 13.56MHz ISO 1443A/B )
option 5 UHF RFID 860-960MHZ ISO18000-6C (EPC Gen2) / ISO18000-6A,B compatibility in direct mode----with AS3992 shipset
option 6 UHF RFID 860-960MHZ ISO18000-6C (EPC Gen2) / ISO18000-6A,B compatibility in direct mode----with impijnR2000 shipset, Long distance reader.

RFID Reader Module Specifications
UHF RFID antanna1 Circularly polarized Dielectric Ceramics
Antenna model: 40*40*5mm
Frequency Range: 922.5MHz±8MHz
Gain(Typical): 2dBi Based on65×65mm ground plane
Impendence: 50 ohm
UHF RFID antanna2 Circularly polarized Dielectric Ceramics
Antenna model: 40*40*5mm
Frequency Range: 865MHz-868MHz
Gain(Typical): 2dBi Based on65×65mm ground plane
Impendence: 50 ohm
UHF RFID antanna3 Circularly polarized Dielectric Ceramics
Antenna model: 35*35*5mm
Frequency Range: 922.5MHz±8MHz
Gain(Typical): 2dBi Based on35×35mm ground plane
Impendence: 50 ohm

Android Smart Card Uhf Rfid Handheld Reader 900mhz Modules Rechargeable Battery

4G LT Android Smart Card Reader RFID Terminal with UHF RFID 900mhz Modules

4G TE Android Smart Card Reader RFID Terminal with UHF RFID 900mhz Modules
